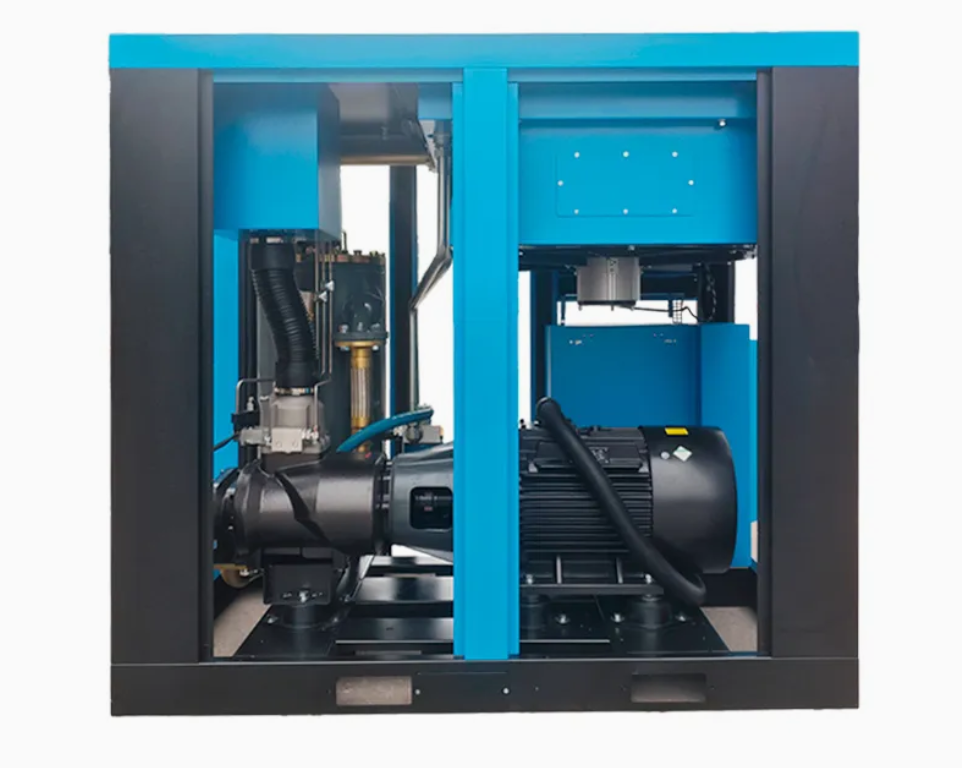

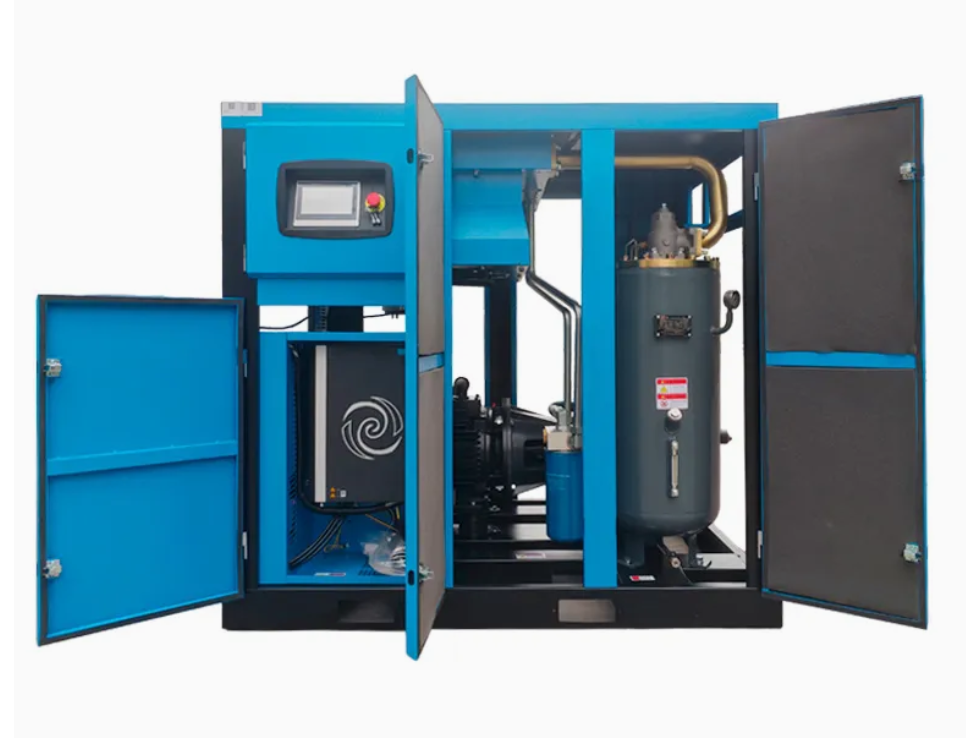

永磁变频机组采用全新的设计，高效永磁电机和高效主机的完美搭配，通过变频器先进的调速变频技术，可以大幅降低客户的使用成本，提供稳定、可靠的压缩空气。
永磁变频螺杆式空压机技术参术/Technical parameter
型号 Model | 功率 Power (kw) | 排气压力 Pressure (Mpa) | 容积流量 Volume flow (m3/min) | 出口尺寸 Pipe Diameter | 机组重量 Weight (kg) | 外形尺寸 Dimension (mm) |
WA10AM | 7.5 | 0.8 | 1.1 | G1/2 | 180 | 700*600*850 |
1.0 | 0.9 |
1.3 | 0.7 |
WA15AM | 11 | 0.8 | 1.7 | G3/4 | 300 | 1000*750*1070 |
1.0 | 1.6 |
1.3 | 1.0 |
WA20AM | 15 | 0.8 | 2.3 | G3/4 | 320 | 1000*750*1070 |
1.0 | 2.1 |
1.3 | 1.7 |
WA30AM | 22 | 0.8 | 3.4 | G1 | 420 | 1100*850*1110 |
1.0 | 3.2 |
1.3 | 2.5 |
WA40AM | 30 | 0.8 | 4.7 | G1 | 450 | 1100*850*1110 |
1.0 | 4.0 |
1.3 | 3.1 |

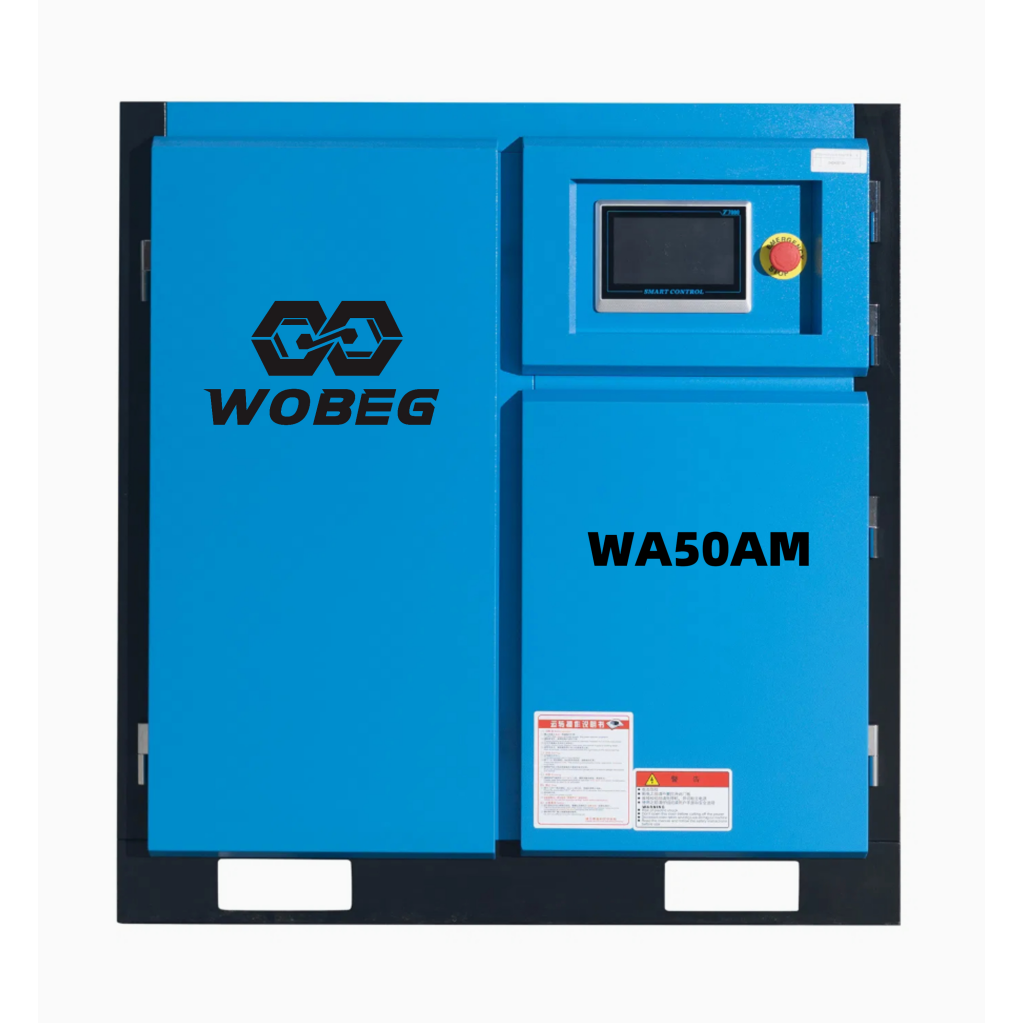

WA50AM | 37 | 0.8 | 6.4 | G1 1/2 | 600 | 1200*1000*1350 |
1.0 | 5.2 |
1.3 | 4.7 |
WA60AM | 45 | 0.8 | 7.3 | G1 1/2 | 700 | 1200*1000*1350 |
1.0 | 6.6 |
1.3 | 5.5 |
WA75AM | 55 | 0.8 | 9.4 | G2 1/2 | 850 | 1500*1230*1550 |
1.0 | 7.2 |
1.3 | 6.2 |
WA100AM | 75 | 0.8 | 12.3 | G2 1/2 | 950 | 1500*1230*1550 |
1.0 | 10.8 |
1.3 | 9.1 |
WA125AM | 90 | 0.8 | 15.2 | G2 1/2 | 1650 | 2100*1400*1650 |
1.0 | 12.3 |
1.3 | 11.4 |
WA150AM | 110 | 0.8 | 19.9 | DN65 | 2300 | 2250*1510*1850 |
1.0 | 16.3 |
1.3 | 14.5 |
WA180AM | 132 | 0.8 | 23.0 | DN65 | 2500 | 2250*1510*1850 |
1.0 | 19.7 |
1.3 | 16.0 |
WA220AM | 160 | 0.8 | 28.5 | DN100 | 4000 | 3250*2100*2200 |
1.0 | 22.8 |
1.3 | 21.5 |
WA250AM | 185 | 0.8 | 30.0 | DN100 | 4200 | 3250*2100*2200 |
1.0 | 27.0 |
1.3 | 23.0 |
WA270AM | 200 | 0.8 | 32.5 | DN125 | 5300 | 3550*2300*2300 |
1.0 | 29.2 |
1.3 | 25.5 |
WA300AM | 220 | 0.8 | 38.0 | DN125 | 5800 | 3550*2300*2300 |
1.0 | 33.0 |
1.3 | 28.8 |
WA350AM | 250 | 0.8 | 44.0 | DN125 | 6300 | 3760*2260*2200 |
1.0 | 41.0 |
1.3 | 35.5 |
