采用高效，经久耐用的两级主机，可以实现多达15%的节能效果，转子经过二十道工序的精加工，保证转子线型的精准度，可靠性和有效性。
双级压缩永磁变频螺杆空压机技术参数/Technical parameter
型号 Model | 功率 Power (kw) | 排气压力 Pressure (Mpa) | 容积流量 Volume flow (m3/min) | 出口尺寸 Pipe Diameter | 机组重量 Weight (kg) | 外形尺寸 Dimension (mm) |
WA30AMII | 22 | 0.6 | -------- | G1 | 560 | 1300*980*1220 |
0.7 | 4.3 |
0.8 | 4.1 |
1.0 | 3.5 |
1.3 | 2.7 |
WA40AMII | 30 | 0.6 | 6.8 | G1 1/2 | 800 | 1400*1100*1450 |
0.7 | 6.4 |
0.8 | 5.9 |
1.0 | -------- |
1.3 | 3.9 |
WA50AMII | 37 | 0.6 | 8.5 | G1 1/2 | 850 | 1400*1100*1450 |
0.7 | 7.5 |
0.8 | 6.9 |
1.0 | 6.3 |
1.3 | 5.4 |
WA60AMII | 45 | 0.6 | 10.7 | G2 | 1300 | 1500*1230*1550 |
0.7 | 10.0 |
0.8 | 9.5 |
1.0 | 8.0 |
1.3 | 6.8 |
WA75AMII | 55 | 0.6 | 13.8 | G2 1/2 | 1700 | 2100*1440*1650 |
0.7 | 13.0 |
0.8 | 12.5 |
1.0 | 9.5 |
1.3 | 8.0 |
WA100AMII | 75 | 0.6 | 18.0 | G2 1/2 | 1800 | 2100*1440*1650 |
0.7 | 15.5 |
0.8 | 15.2 |
1.0 | 13.0 |
1.3 | 11.0 |
WA125AMII | 90 | 0.6 | 22.0 | DN65 | 2400 | 2450*1700*1760 |
0.7 | 20.5 |
0.8 | 19.5 |
1.0 | 16.5 |
1.3 | 14.0 |

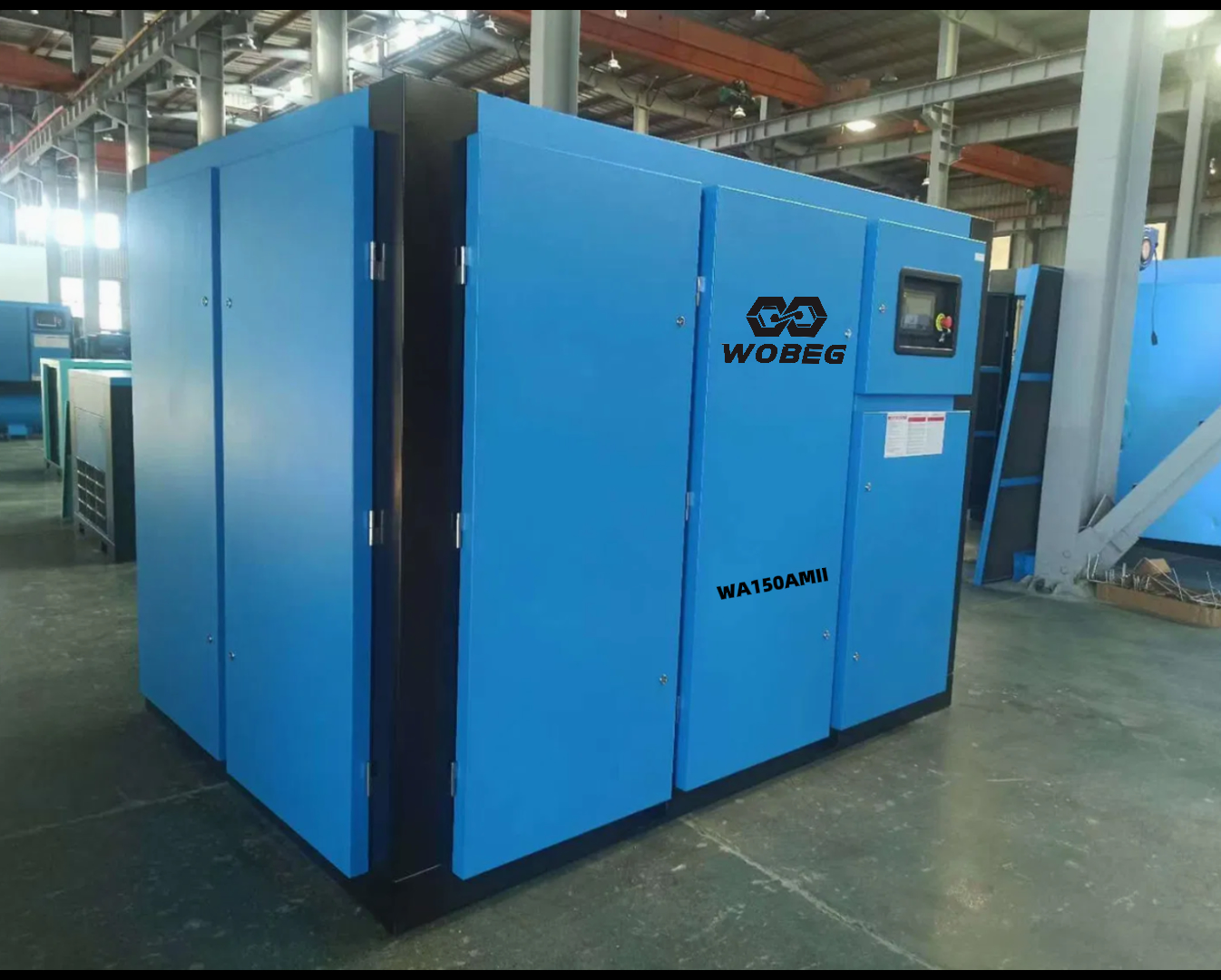

WA150AMII | 110 | 0.6 | 25.8 | DN80 | 2800 | 2600*1900*1890 |
0.7 | 24.0 |
0.8 | 23.0 |
1.0 | 20.0 |
1.3 | 16.5 |
WA180AMII | 132 | 0.6 | 32.0 | DN80 | 3000 | 2600*1900*1890 |
0.7 | 29.0 |
0.8 | 27.0 |
1.0 | 23.7 |
1.3 | 19.0 |
WA220AMII | 160 | 0.6 | 38.5 | DN100 | 4300 | 3250*2100*2200 |
0.7 | 35.3 |
0.8 | 33.5 |
1.0 | 30.6 |
1.3 | 26.0 |
WA250AMII | 185 | 0.6 | 43.8 | DN100 | 4500 | 3250*2100*2200 |
0.7 | 41.0 |
0.8 | 38.0 |
1.0 | 34.5 |
1.3 | 29.0 |
WA270AMII | 200 | 0.6 | 48.8 | DN125 | 5800 | 3550*2300*2300 |
0.7 | 46.0 |
0.8 | 42.0 |
1.0 | 38.0 |
1.3 | 31.5 |
WA300AMII | 220 | 0.6 | 53.0 | DN125 | 6300 | 3550*2300*2300 |
0.7 | 50.0 |
0.8 | 46.0 |
1.0 | 41.0 |
1.3 | 35.0 |
WA350AMII | 250 | 0.6 | 58.0 | DN125 | 7000 | 3760*2260*2200 |
0.7 | 55.5 |
0.8 | 53.0 |
1.0 | 45.8 |
1.3 | 40.5 |
WA380AMII | 280 | 0.6 | 63.5 | DN125 | 7500 | 3760*2260*2200 |
0.7 | 62.0 |
0.8 | 59.0 |
1.0 | 52.0 |
1.3 | 43.0 |
WA420AMII | 315 | 0.6 | 81.0 | DN125 | 8500 | 4300*2300*2430 |
0.7 | 74.0 |
0.8 | 67.0 |
1.0 | 59.0 |
1.3 | 52.0 |
WA480AMII | 355 | 0.6 | 85.0 | DN125 | 9500 | 4700*2250*2420 |
0.7 | 81.0 |
0.8 | 78.0 |
1.0 | 64.0 |
1.3 | 56.0 |
WA540AMII | 400 | 0.6 | 92.5 | DN125 | 10000 | 4700*2250*2420 |
0.7 | 89.0 |
0.8 | 84.5 |
1.0 | 77.0 |
1.3 | 64.0 |
0.7 | 101.1 |
0.8 | 96.0 |
1.0 | 85.0 |
1.3 | 79.0 |
