适用行业：污水处理、纺织、化纤、医药、造纸、钢铁、发电、水泥、汽车喷涂、玻璃、煤矿、粮食、石化和等重要工业领域。
无油螺杆鼓风机技术参数/Technical parameter
型号 Model | 功率 Power (kw) | 排气压力 Pressure (Bar/Kpa) | 容积流量 Volume flow (m3/min) | 出口尺寸 Pipe Diameter | 机组重量 Weight (kg) | 外形尺寸 Dimension (mm) |
WA7.5BPM | 5.5 | 0.4/40 | 4.0 | DN150 | 700 | 1400*1100*1360 |
0.6/60 | 3.2 |
WA10BPM | 7.5 | 0.4/40 | 6.4 | DN150 | 750 | 1400*1100*1360 |
0.6/60 | 4.6 |
0.8/80 | 3.5 |
WA15BPM | 11 | 0.4/40 | 9.0 | DN150 | 800 | 1400*1100*1360 |
0.6/60 | 7.5 |
0.8/80 | 6.0 |
1.0/100 | 4.8 |
1.2/120 | 4.0 |
1.5/150 | 2.8 |
WA20BPM | 15 | 0.4/40 | 13.6 | DN150 | 1200 | 2200*1250*1900 |
0.6/60 | 10.5 | DN150 | 800 | 1400*1100*1360 |
0.8/80 | 8.3 |
1.0/100 | 6.7 |
1.2/120 | 5.8 |
1.5/150 | 4.5 |
WA25BPM | 18.5 | 0.4/40 | 16.2 | DN150 | 1250 | 2200*1250*1900 |
0.6/60 | 13.1 |
0.8/80 | 10.3 | DN150 | 800 | 1400*1100*1360 |
1.0/100 | 9.2 |
1.2/120 | 7.5 |
1.5/150 | 6.0 |
WA30BPM | 22 | 0.4/40 | 22.0 | DN150 | 1250 | 2200*1250*1900 |
0.5/50 | 19.0 |
0.6/60 | 16.0 |
0.7/70 | 14.5 |
0.8/80 | 13.0 |
1.0/100 | 9.5 | 850 | 1400*1100*1360 |
1.2/120 | 8.8 |
1.5/150 | 7.0 |
WA40BPM | 30 | 0.4/40 | 29.0 | DN200 | 1750 | 2700*1400*1900 |
0.6/60 | 26.0 | DN150 | 1250 | 200*1250*1900 |
0.7/70 | 23.5 |
0.8/80 | 21.5 |
1.0/100 | 15.8 |
1.2/120 | 12.5 |
1.7/170 | 7.5 | DN150 | 800 | 1400*1100*1360 |
WA50BPM | 37 | 0.4/40 | 38.0 | DN200 | 1750 | 2700*1400*1900 |
0.5/50 | 35.0 |
0.6/60 | 32.0 |
0.8/80 | 26.0 | DN150 | 1250 | 2200*1250*1900 |
1.0/100 | 21.5 |
1.2/120 | 15.5 |
1.5/150 | 12.5 |
WA60BPM | 45 | 0.4/40 | 44.0 | DN200 | 750 | 2700*1400*1900 |
0.5/50 | 42.0 |
0.6/60 | 38.0 |
0.8/80 | 33.5 |
1.0/100 | 26.0 | DN150 | 1300 | 2200*1250*1900 |
1.2/120 | 21.0 |
1.5/150 | 15.5 |
1.7/170 | 12.7 |
WA75BPM | 55 | 0.4/40 | 55.0 | DN200 | 1800 | 2700*1400*1900 |
0.6/60 | 48.0 |
0.7/70 | 44.0 |
0.8/80 | 41.5 |
1.0/100 | 35.0 | 1750 |
1.2/120 | 31.0 |
1.5/150 | 21.0 | DN150 | 1350 | 2200*1250*1900 |
1.8/180 | 16.5 |
2.0/200 | 14.5 |
WA125BPM | 90 | 0.4/40 | 98.0 | DN300 | 2550 | 3300*1750*2350 |
0.6/60 | 78.0 | DN250 | 2200 | 3100*1500*2150 |
0.8/80 | 68.0 |
1.0/100 | 61.0 |
1.2/120 | 50.0 | DN200 | 1850 | 2700*1400*1900 |
1.5/150 | 42.0 |
1.8/180 | 34.0 |
2.0/200 | 30.5 |

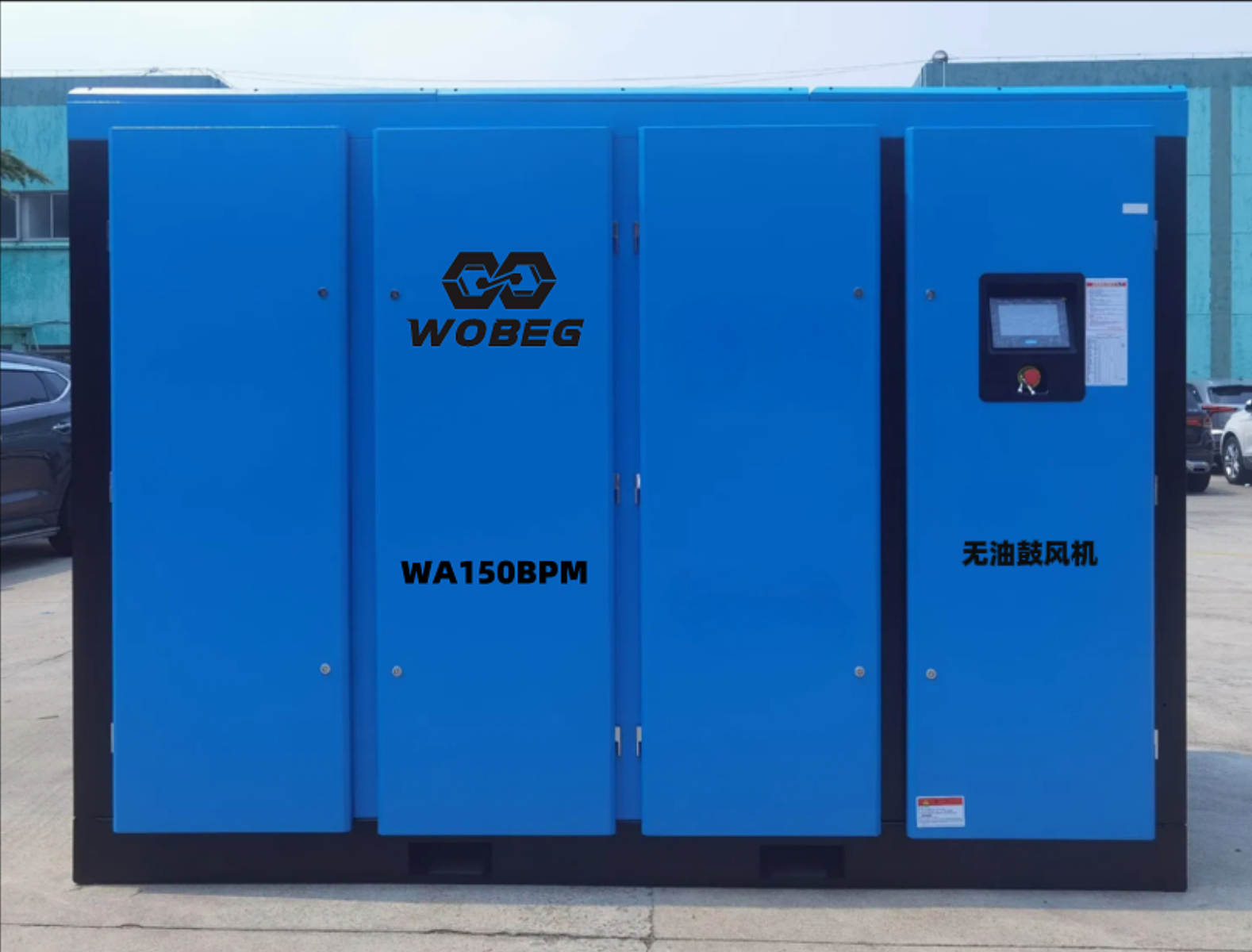

WA150BPM | 110 | 0.4/40 | 13.0 | DN300 | 2600 | 3300*1750*2350 |
0.6/60 | 92.0 |
0.8/80 | 78.0 |
1.0/100 | 67.5 | DN250 | 2250 | 3100*1500*2150 |
1.2/120 | 60.0 |
1.5/150 | 49.0 |
1.8/180 | 41.5 |
2.0/200 | 37.5 |
WA180BPM | 132 | 0.6/60 | 112.0 | DN300 | 2600 | 3300*1750*2350 |
0.8/80 | 98.0 |
1.0/100 | 81.0 |
1.1/110 | 73.0 |
1.2/120 | 71.0 | DN250 | 2300 | 3100*1500*2150 |
1.5/150 | 58.0 |
1.8/180 | 48.0 | DN200 | 1900 | 2700*1400*1900 |
2.0/200 | 44.0 |
